33C
Structure

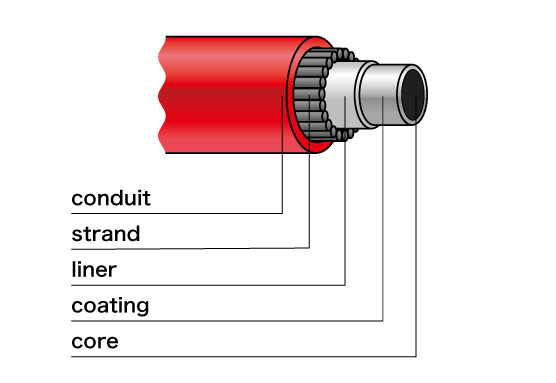

33C/J33C/J34C/J33BC structure
Features

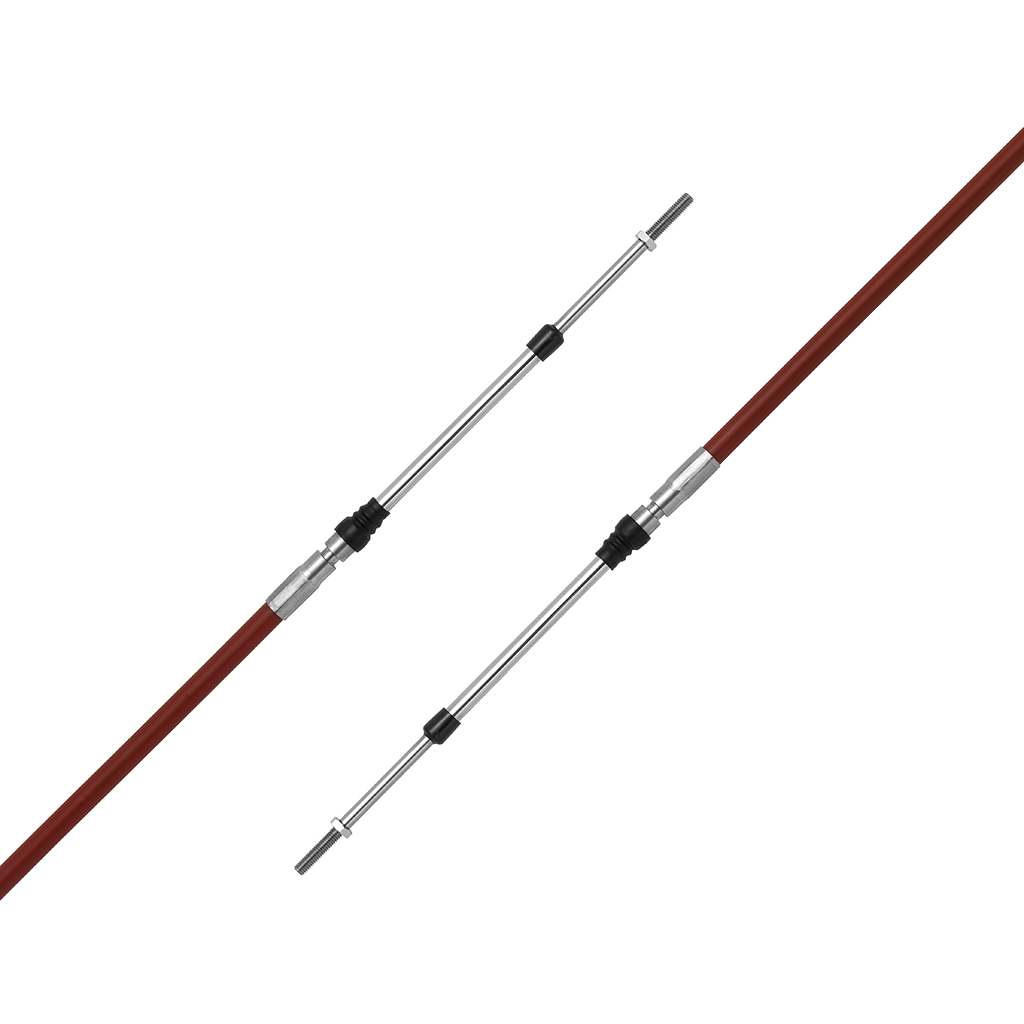

33C is a standardized product and the most commonly used cable in the world.
Main Part Numbers
| Item | 33C | J33C | J34C | J33BC | 43XLC30 | J43XLC30 | ||
|---|---|---|---|---|---|---|---|---|
| Type | clamp | clamp & | clamp | |||||
| tip thread diameter | 10-32UNF | M5×0.8 | 10-32UNF | M5×0.8 | ||||
| anchoring | clamp | clamp | M12×1.25 | clamp | ||||
| color | red | red | ||||||
| conduit | Materials | polyethylene & oil tempered wire | polyethylene & oil tempered wire | |||||
| outer dia (mm) | 8.6 | 9.7 | ||||||
| core | Materials | stainless steel | nylon & hard steel wire | |||||
| outer dia (mm) | 1.9 | 3.2 | ||||||
| stroke (mm) | 76.2 | 101.6 | 76.2 | 76.2 | ||||
| mounting dimensions (mm） （mid-stroke） |
170 | 208 | 170 | 187 | 170 | |||
| input load capacity (N) | push | 176 | 137 | 176 | 176 | |||
| pull | 225 | 225 | 225 | 225 | ||||
| sleeve roll angle | 8 degrees per direction |
8 degrees per direction |
||||||
| min. bending radius (mm) | R200 | R150 | ||||||
| operating temperature | -30～80℃ | -30～80℃ | ||||||
| storage temperature | -40～107℃ | -40～107℃ | ||||||
| lubricant | special formula oil | silicone grease | ||||||
