Product Information

KE4+ offers an upgrade over the cable type control systems which can be cumbersome to install & operate. Up to 4 stations can be installed; operation is safe & smooth.

FeaturesElectronic Control System KE-4+ (ke four plus)

KE-4 was designed with safety & operability in mind.
  • PTT SW option for outboard engines
  • built-in synchro function SW
  • 7-seg display for diagnostics display
  • can be linked to PC via custom software
  • ergonomic lever grip
  • mounting dimensions match legacy KE-4 control head
  • CAN communication between head & control unit
  • triple & quad engine configurations also possible
  • trolling operation option
  • idle speed control option

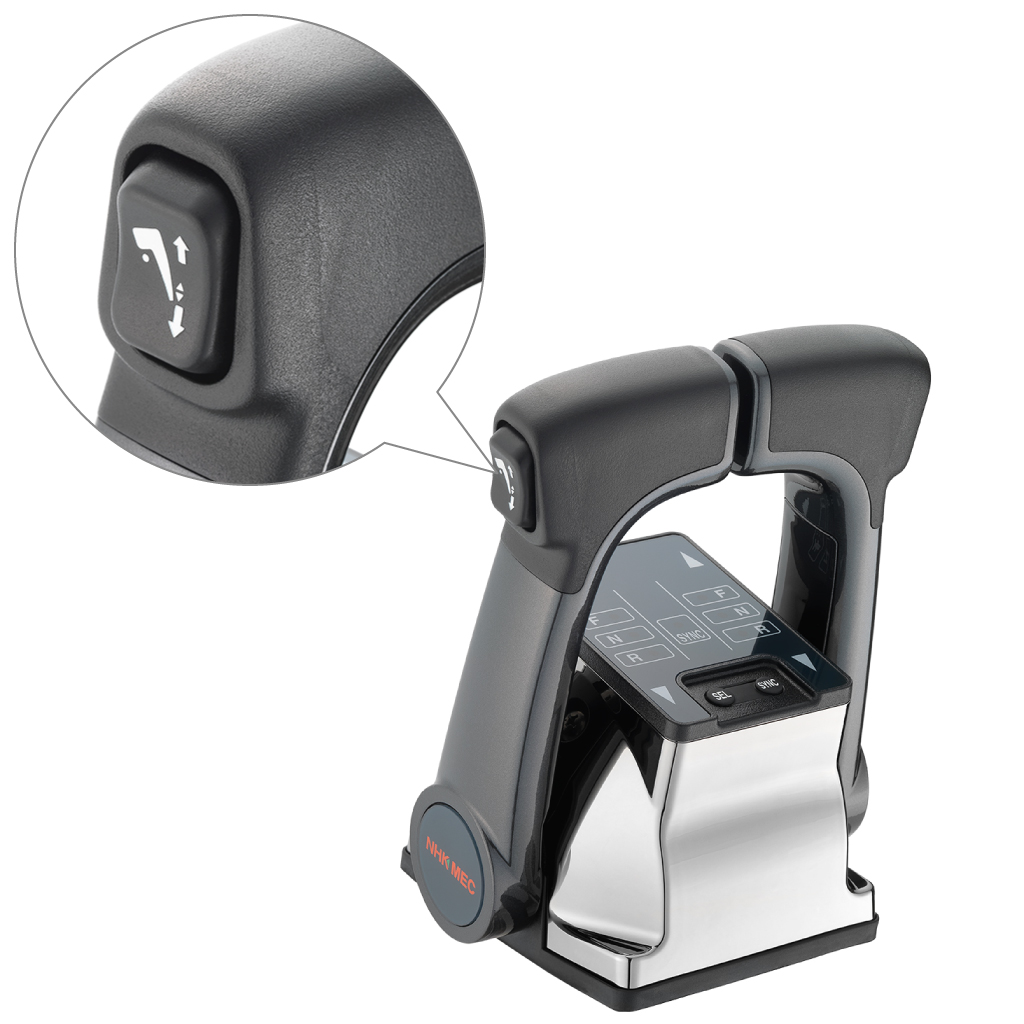

PTT SW option for outboard engines

PTT SW option for outboard engines

With a built-in PTT SW (trim & tilt switch), the operator can activate that function smoothly without removing their hand from the control lever. (PTT SW is an option; control head can be specified without it).

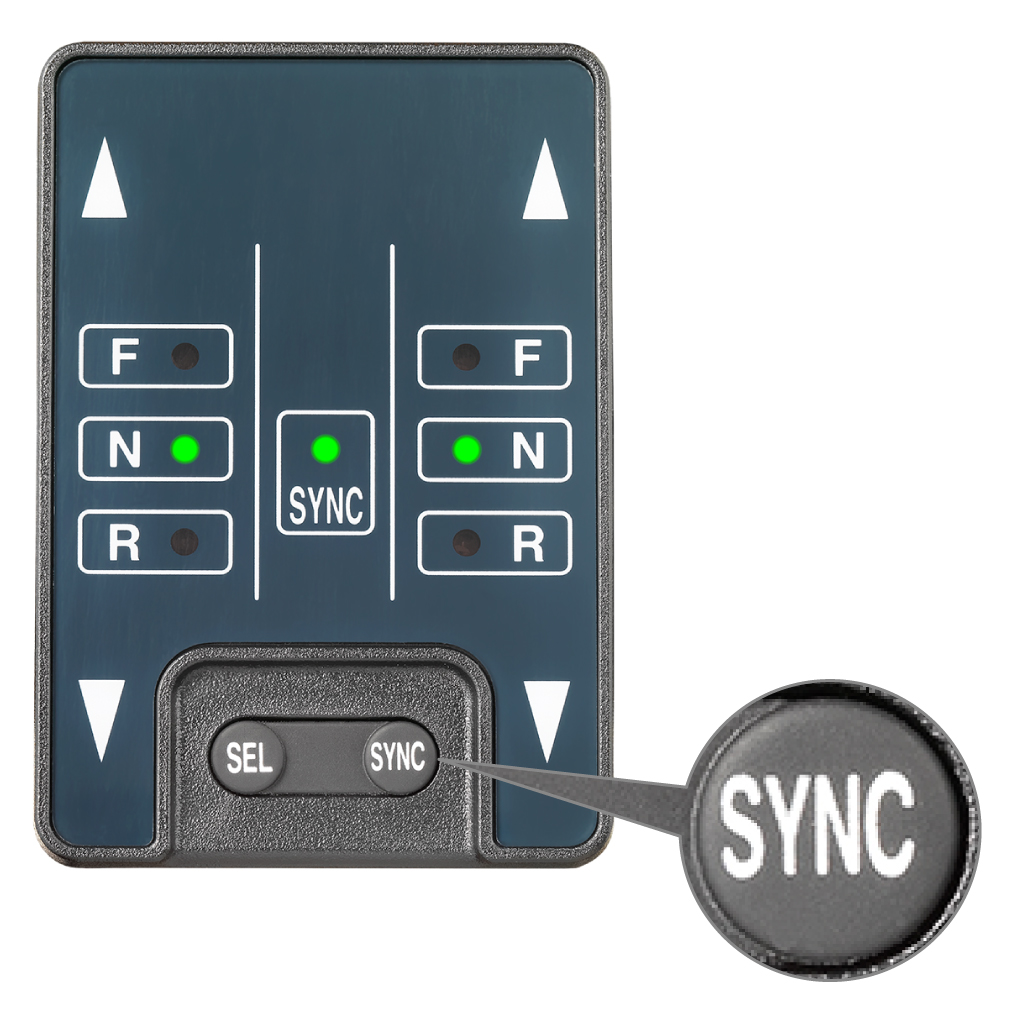

Built-in synchro function SW

Built-in synchro function SW

A built-in synchronization function switch (on lever) for multi-engine configurations (dual, triple, quad) eliminates the need for a separate synch kit, thus reducing installation space & wiring requirements.

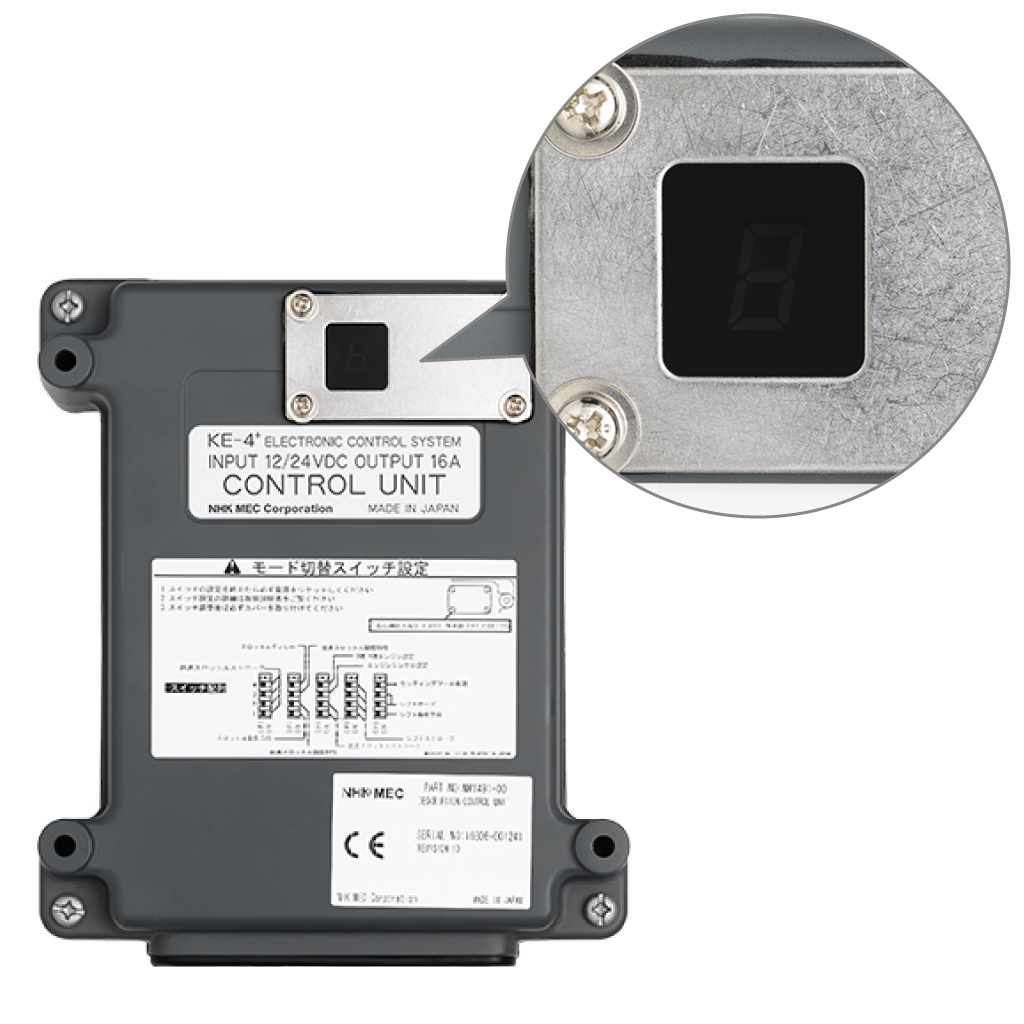

7-seg display for diagnostics display

7-seg display for diagnostics display

In the case of an system malfunction, in addition to the control head LED's flashing and the audible buzzer sound, there is also now an alarm code visible via the 7-segment display on the control unit. Alarm code remains until system is powered OFF; useful for verifying malfunction occurence until the boat is returned to port.

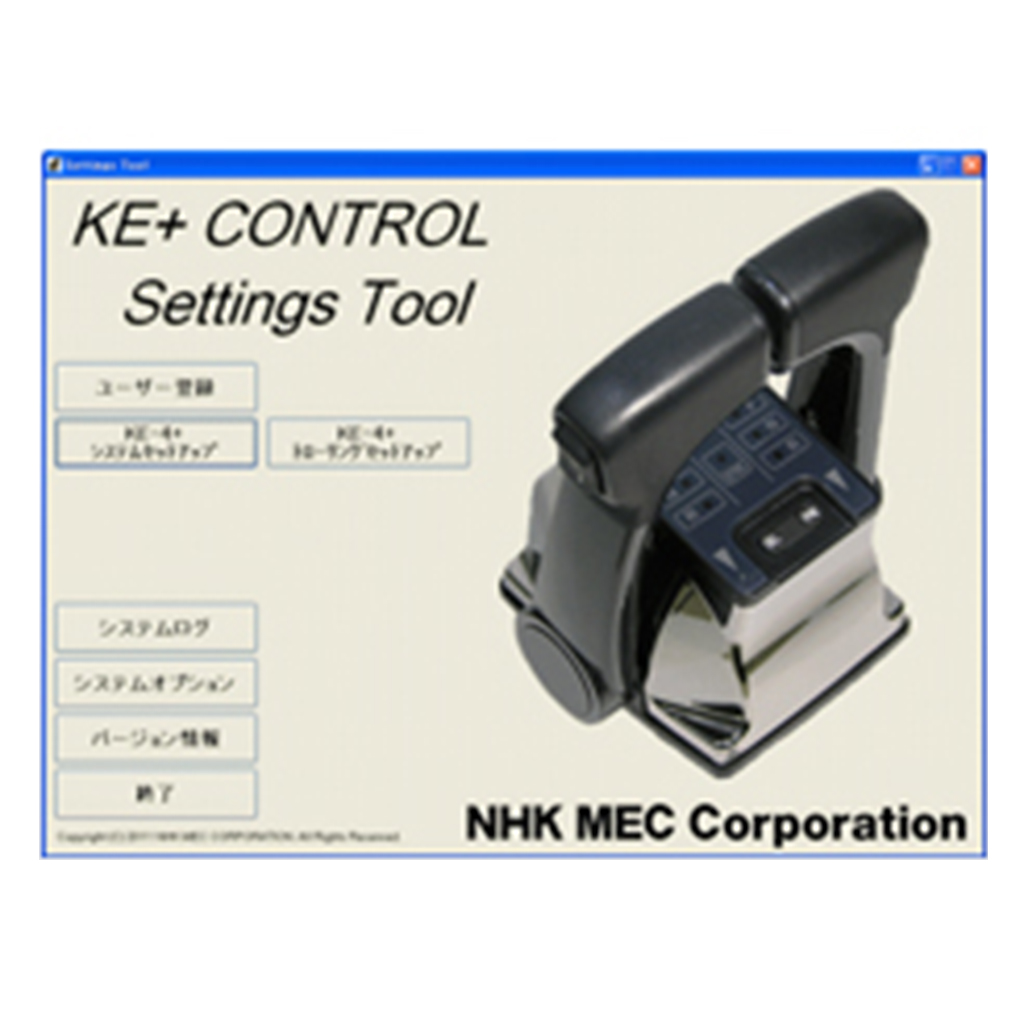

Can be linked to PC via custom software

Can be linked to PC via custom software

Using the custom software & connecting harness (sold separately); the KE-4+ control unit can be directly connected to a PC in order to view the alarm history logs & shift cycle count in addition to all actuator settings. You can also complete your user registration. All data can be saved onto the PC for future refrence. ※Operating environment OS: Windows XP SP2 or higher Free space: 30MB or more

Note

In addition to KE-4 series (boats with mechanical shift & throttle), control systems also include KE-5 series (for boats with electronic shift & throttle), KE-6 series (mechanical shift, electronic throttle) & KE-7 series (mechanical throttle & electronic shift).  For details on these systems, please download related documents from this website and/or contact your dealer / NHK MEC.



Product information may be subject to change without notice. Products may be discontinued without prior notice.
