Cable Installation & Handling

Item 30・30HP 40XL・40 50XL 60
stroke (mm) 50 76 101 50 76 101 50 76 101 50 76 101
Capacity
Input load
N
{kgf}
push 225
{23}
176
{18}
137
{14}
441
{45}
353
{36}
265
{27}
666
{68}
578
{59}
490
{50}
892
{91}
804
{82}
666
{68}
pull 225
{23}
441
{45}
754
{77}
892
{91}



  1. Please use withing the capacity range as per the table above.

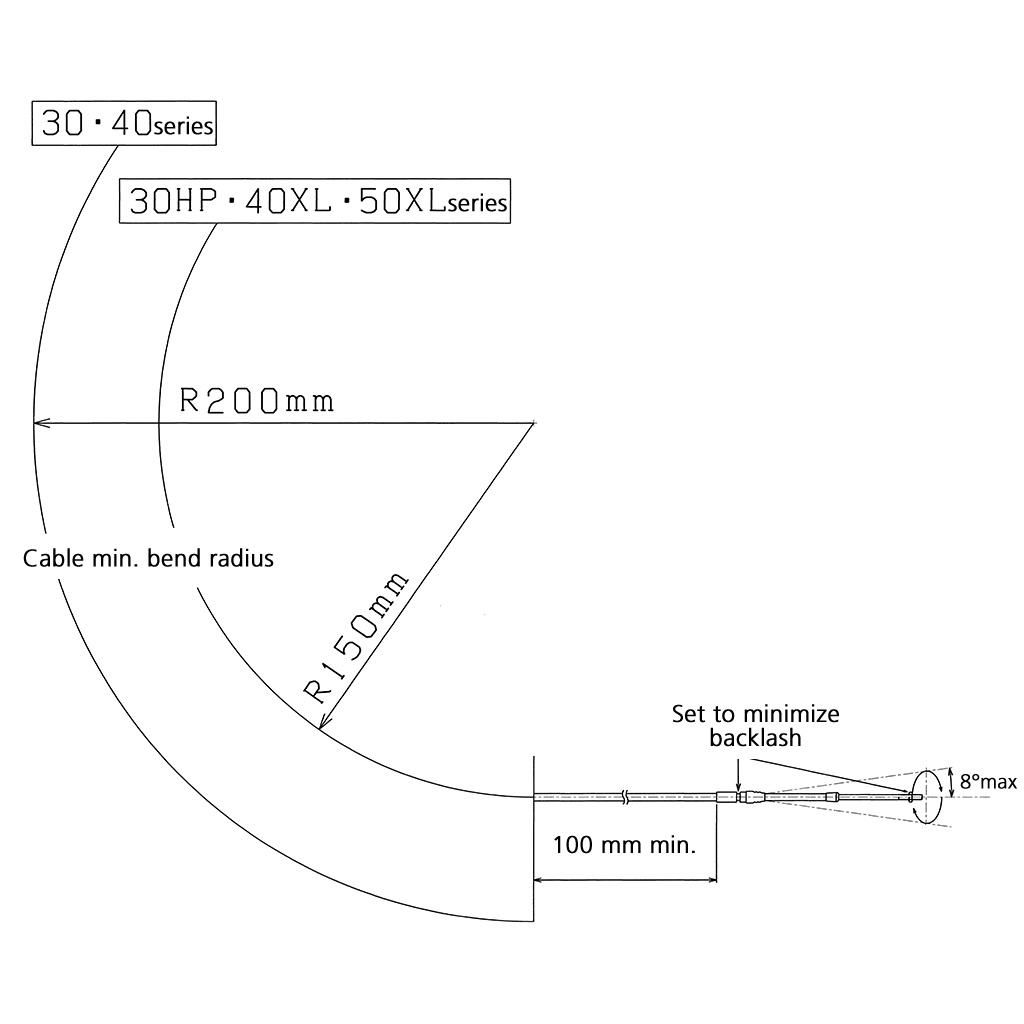

  2. Setup should remain above the min. bending raidus as per the figure.
  3. Limit the use of small bends as much as possible.
  4. Avoid installation in hot spots such as direct contact with engine. Use protective cover if necessary.
  5. Please use within a range of -30℃ ~ +80℃.
  6. Please avoid installing in a location where water accumulates. If water is unavoidable, use cable with protective boots included.
  7. Determine & use proper cable length in order to avoid wrapping excess cable length into a coil around appartus.
  8. Avoid installation setup where the cable end rod is bent.
  9. In cases when another object interferes with the cable, please set up the protector accordingly.
  10. Clamp down the cable such that it is not subjected to large vibrations; however avoid applying a load onto the conduit when clamping.
  11. Avoid installing in a location where a person might step on the cable.

In case of marine use; repeated cycling may result in cable fatigue / breakdown.
Cycle capacity varies with operating conditions, but if the above points are followed, the table below provides reliable guidance.
Perform periodical inspections and repalce cable as required.

Model Core Specifications Operating Cycles (reference only) Periodic Replacement Guide
33C, J33C, J34C, J33BC Single wire core specifications 50,000 cycles High duty cycle boats: commercial, fishing, etc.
Approx. 5,000 hrs (2 yrs)
Others Core twisted wire specifications 100,000 cycles High duty cycle boats: commercial, fishing, etc.
Approx. 10,000 hrs (4 yrs)


Product information may be subject to change without notice. Products may be discontinued without prior notice.
