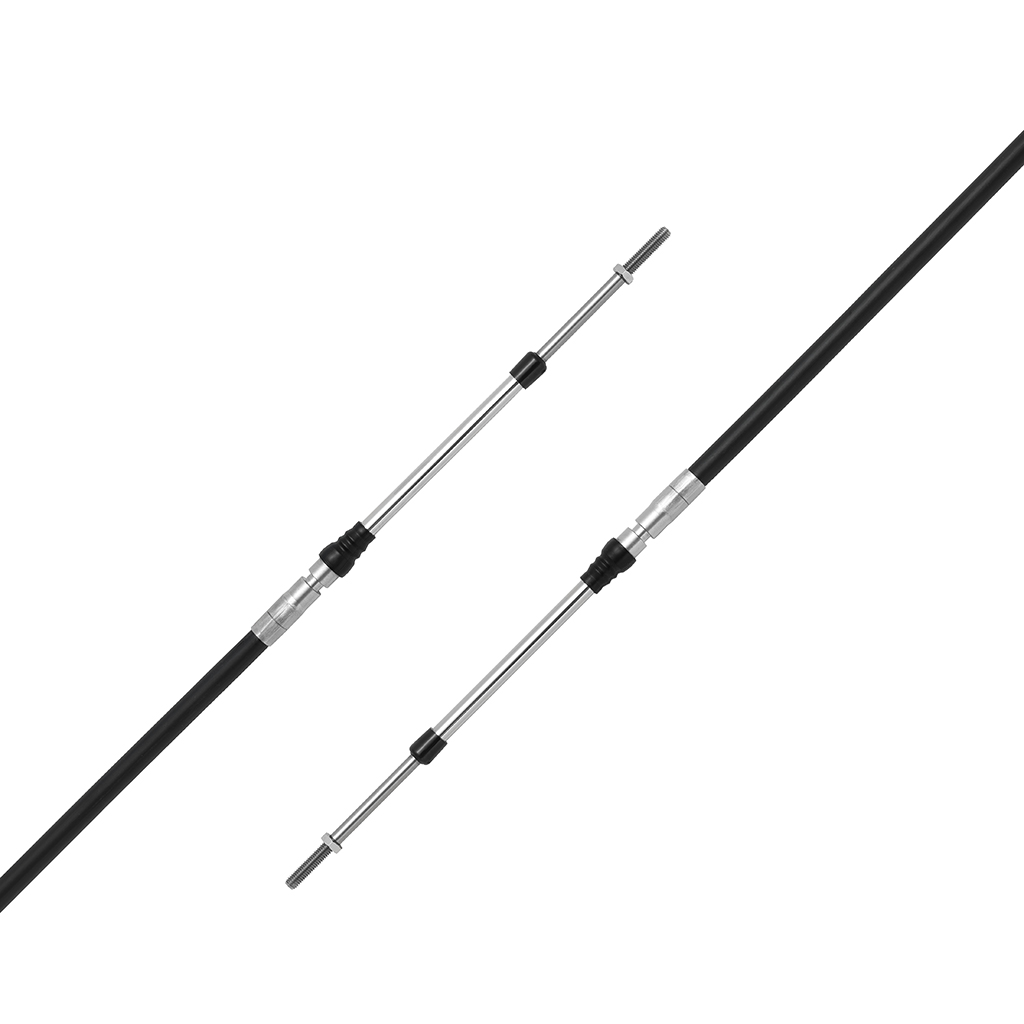

33HPC

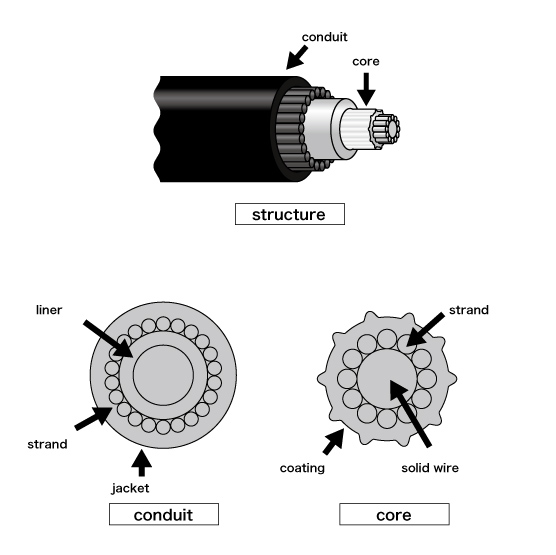

Structure
Features
HPC(High Perfomance Cables) allow dramatically improvided remote control operation compared to standard cables.
- new core structure design
- load efficient & reduced cable backlash
- optimal for 2 station application

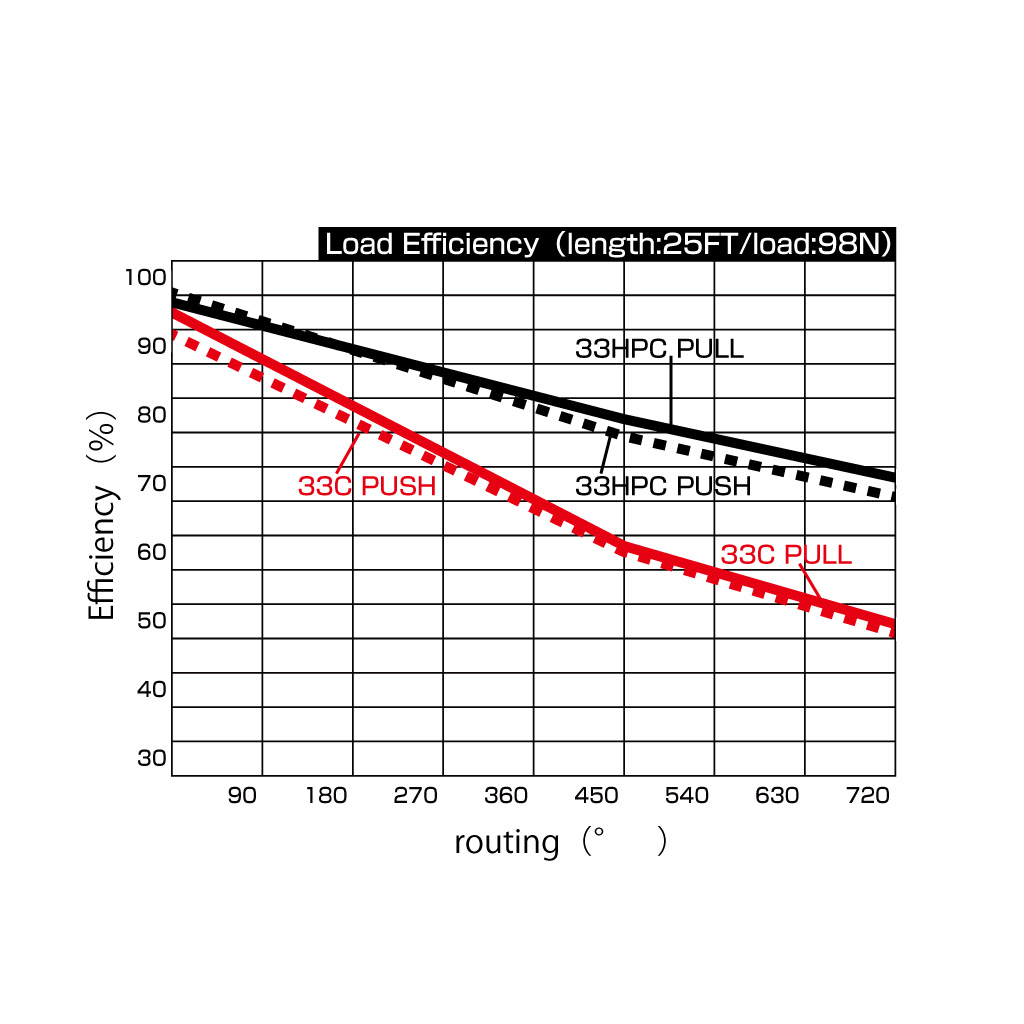

Load Efficiency

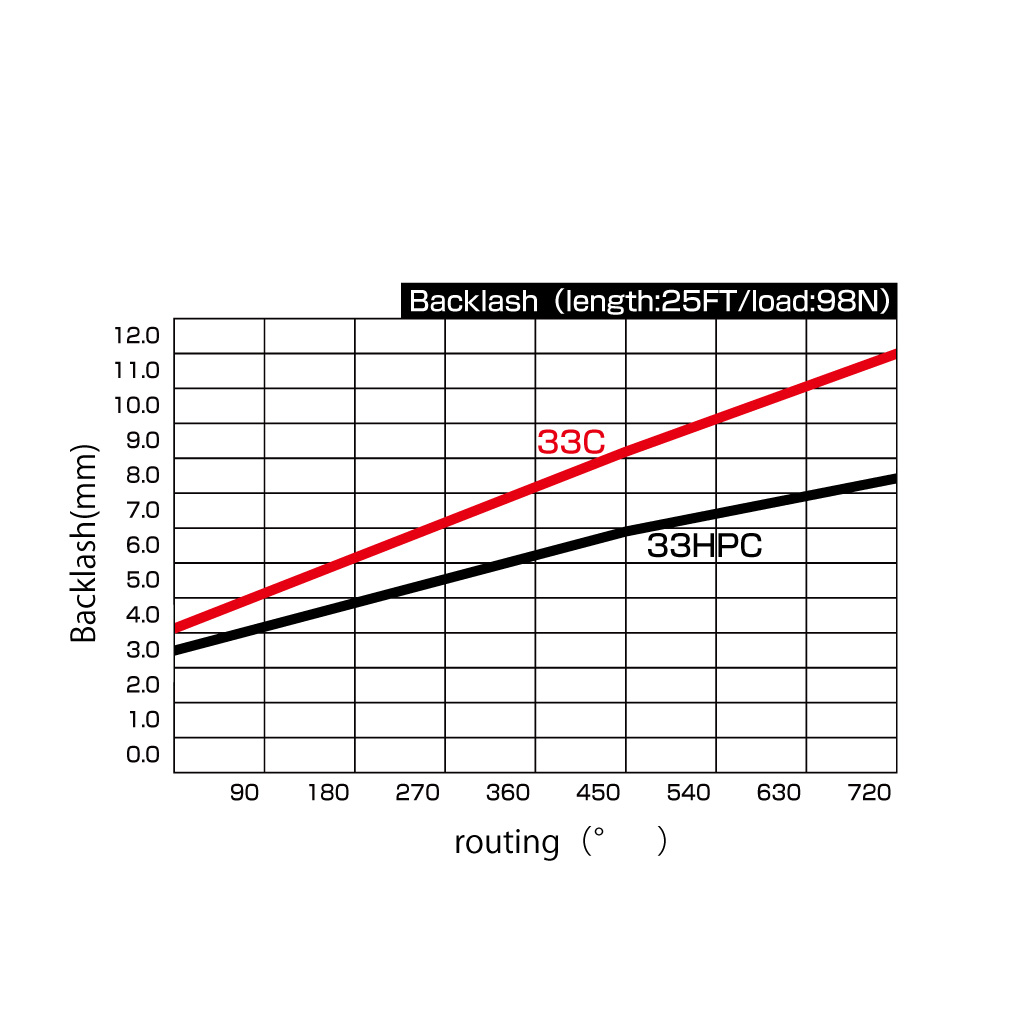

Backlash
Main Part Numbers
| Item | 33HPC | J33HPC | J34HPC | J33HPBC | ||
|---|---|---|---|---|---|---|
| Type | clamp | clamp & | ||||
| tip thread diameter | 10-32UNF | M5×0.8 | ||||
| anchoring | clamp | clamp | M12×1.25 | |||
| color | black | |||||
| conduit | Materials | polyethylene & oil tempered wire | ||||
| outer dia (mm) | 8.6 | |||||
| core | Materials | nylon & hard steel wire | ||||
| outer dia (mm) | 3.2 | |||||
| stroke (mm) | 76.2 | 75 | 100 | 75 | ||
| mounting dimensions (mm） （mid-stroke） |
170 | 208 | 170 | 187 | ||
| input load capacity (N) | push | 176 | 137 | 176 | ||
| pull | 225 | 225 | 225 | |||
| sleeve roll angle | 8 degrees per direction | |||||
| min. bending radius (mm) | R150 | |||||
| operating temperature | -30～80℃ | |||||
| storage temperature | -40～107℃ | |||||
| lubricant | silicone grease | |||||
