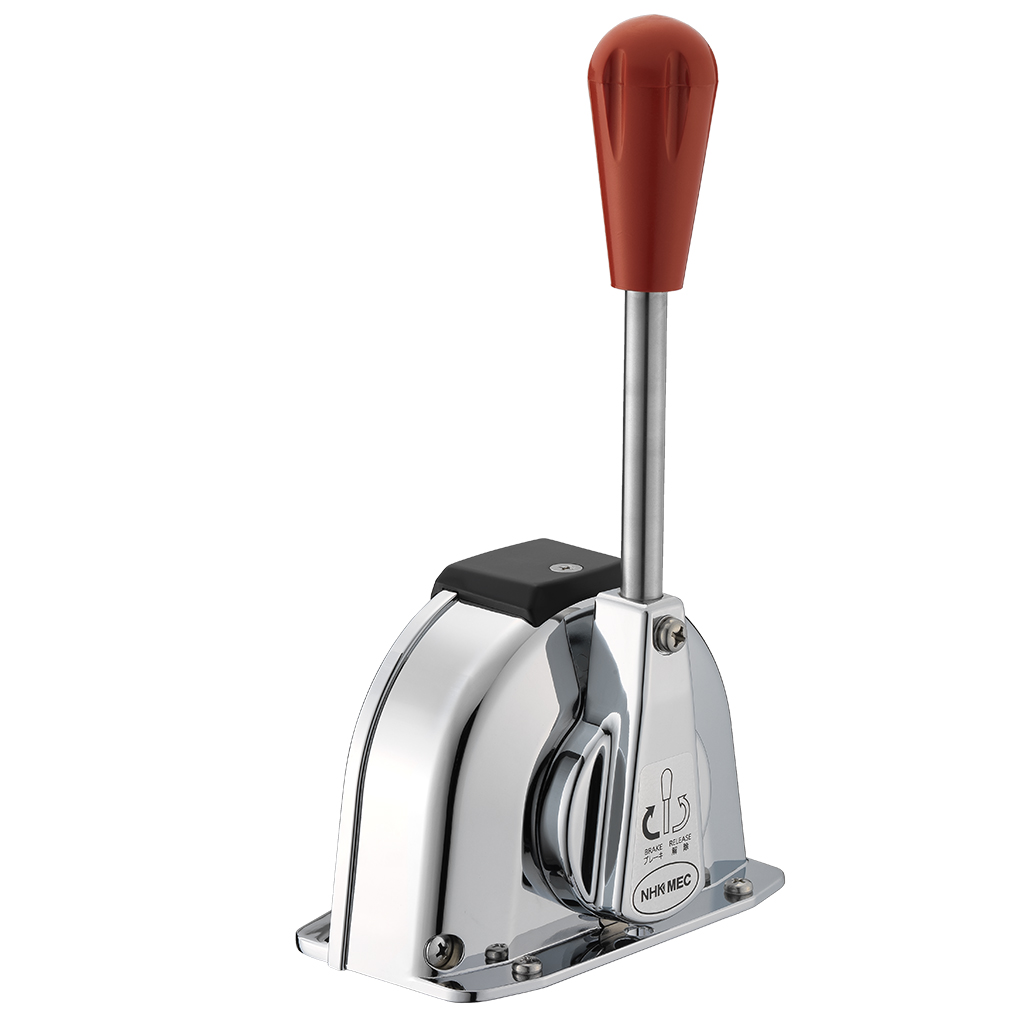

NB Single
- net weight 2.4kg (gross 2.7kg)
- picture shows a NB single throttle version
NB Twin
- net weight 3.3kg (gross 4.2kg)
- picture shows a KB single throttle version
Features
NB series was designed to effectively handle the varying governor loads of small commercial boats, including fishing boats. The control also includes adjustable cable stopper & stoke; in addition to our adjustable throttle position setting (brake function).
Main Part Numbers
|
Name |
Cable Type |
Part No. |
Drawing |
|---|---|---|---|
|
NB single (for clutch) |
30S. Inch |
NB0119-00 |  014NBS Drawing 14.60 KB
|
|
30S. mm |
NB0120-00 | ||
|
NB single (for throttle) |
30S. Inch |
NB0111-00 | |
|
30S. mm |
NB0112-00 | ||
|
NB twin (for clutch & throttle) |
30S. Inch |
NB0239-00 | 014NBT Drawing 16.56 KB
|
|
30S. mm |
NB0212-00 | ||
|
NB twin (for clutch & throttle)with Neutral safety swtich (SIGP) harness included |
30S. Inch |
NB0243-00 | |
|
30S. mm |
NB0244-00 |
Options
| Name | Cable Type | Part No. |
|---|---|---|
| NB attachment kit for single | 30S. Inch | NB0100-P03 |
| 30S. mm | NB0100-P02 | |
| 40S. Inch | NB0100-P05 | |
| 40S. Mm | NB0100-P04 | |
| Neutral safety switch (SIGP) kit | NB0108-00 | |
| Wire harness kit | NJ0201-00 |
014NB Instruction Manual 467.55 KB
