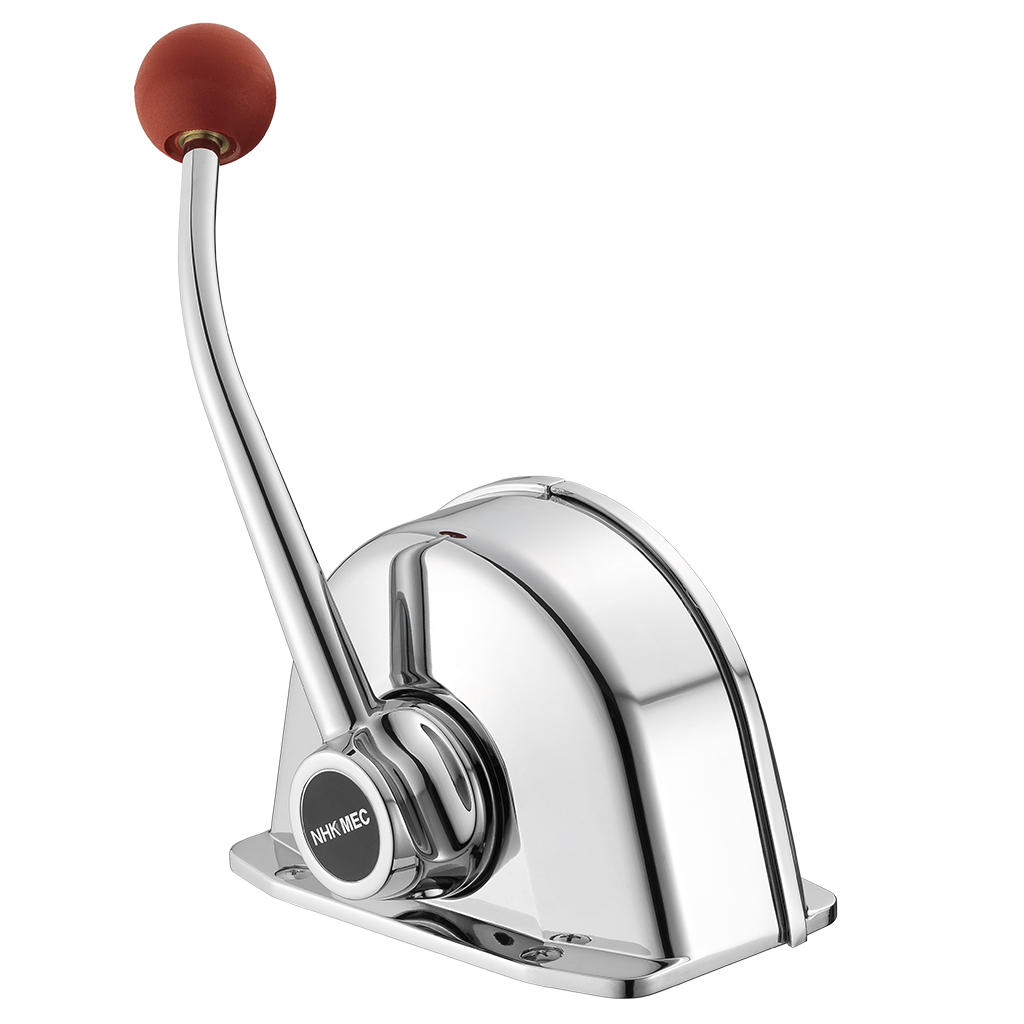

MT-3 Single
- net weight 2.8kg (gross 3.2kg)

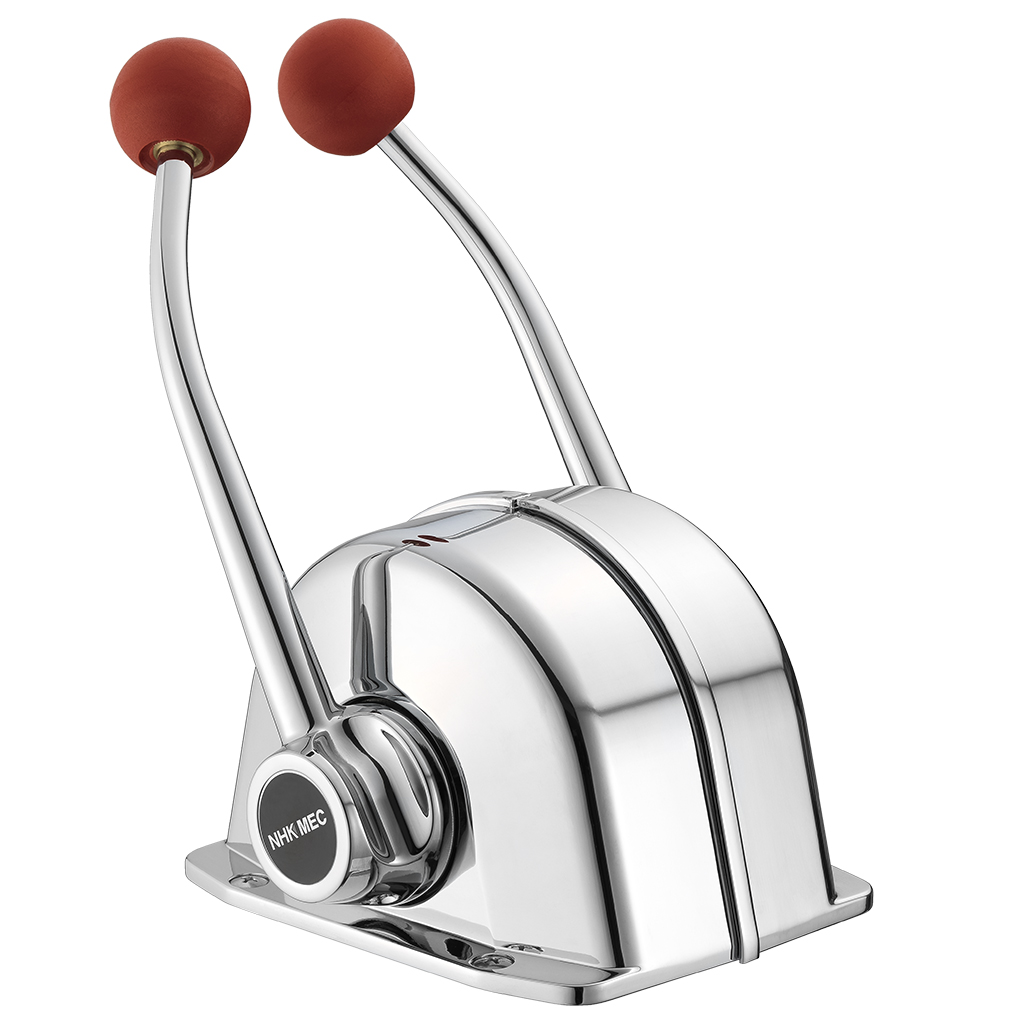

MT-3 Twin
- net weight 4.6kg (gross 5.0kg)
Features
Best selling category. A simple design which boasts longevity & reliability. The MT-3 also has selectable lever angle. In addition, the shape of the lever allows single hand operation of 2 levers in the case of twin engine application.
Main Part Numbers
| Name | Throttle Type | Clutch Type | Cable Type | Part No. | 寸法図 |
|---|---|---|---|---|---|
| MT-3 single | Pull to open | MT-3 twin | 33C | NA2001-00 | |
| Pull to open | Pull forward | J33C | NA2003-00 | ||
| MT-3 twin | Pull to open | Pull forward | 33C | NA2051-00 | |
| Pull to open | Pull forward | J33C | NA2052-00 |
※Neutral safety switch (SIGP) included
Options
| Part No. | Name |
|---|---|
| NA2012-00 | HD kit |
| NJ0201-00 | Wire harness kit |
