Features

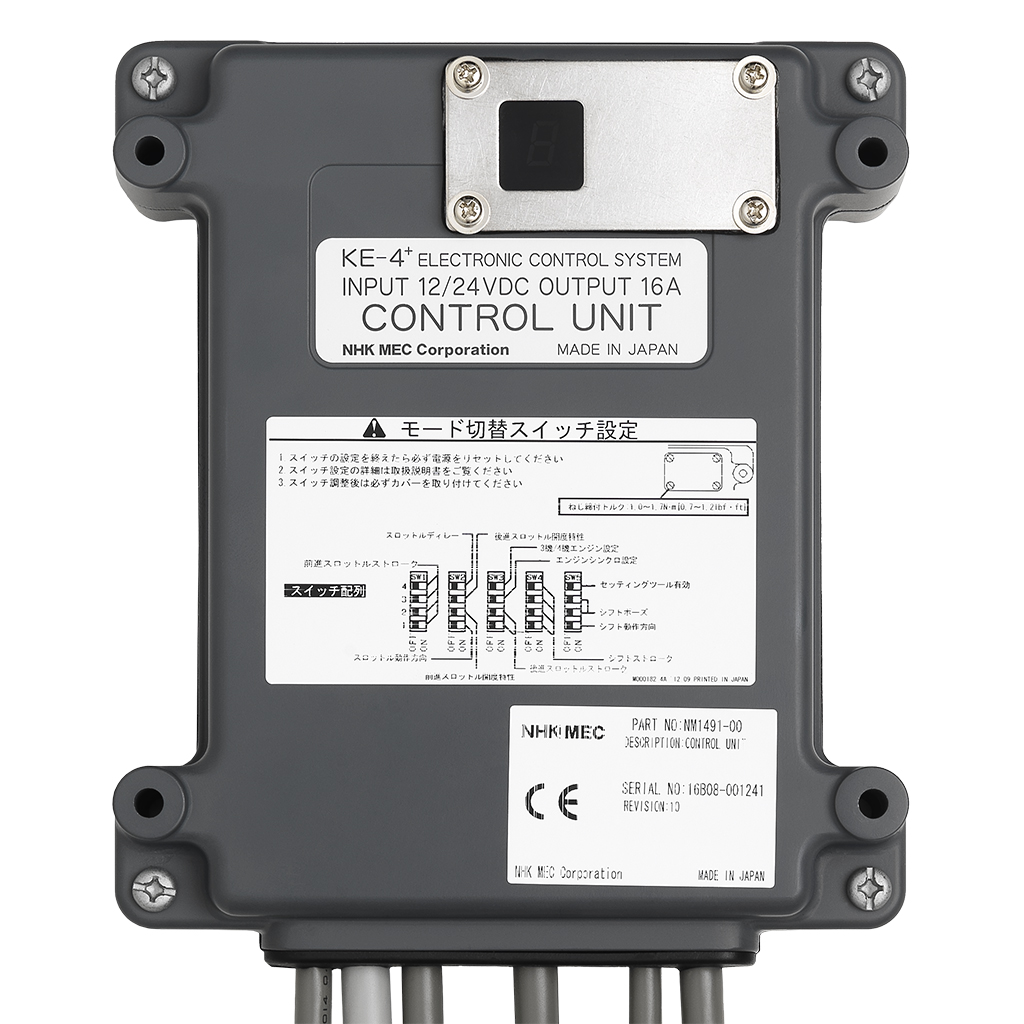

The control unit is the brain of the KE-4+ system. Stroke & direction of shift & throttle functions can be set via dip switches.
SHIFT
- PUSH FWD & PULL FWD selections
- stroke selection(forward / reverse, 26・30・34・40mm)
- shift pause(protection of the gearbox in case of sudden lever movement)
THROTTLE
- PUSH TO OPEN & PULL TO OPEN selections
- stroke settings (31~80mm, automatic adjust function for full open setting)
- throttle curves (for throttle response adjustment)
- throttle delay option (minimize impact of suddent lever movements)
Note
In addition to KE-4 series (boats with mechanical shift & throttle), control systems also include KE-5 series (for boats with electronic shift & throttle), KE-6 series (mechanical shift, electronic throttle) & KE-7 series (mechanical throttle & electronic shift). For details on these systems, please download related documents from this website and/or contact your dealer / NHK MEC.
001-KE-4+ Instruction Manual 5E
1 file(s) 3.88 MB
002Control Unit
1 file(s) 18.68 KB
